Carousel motion

Help fix carousel stutter and overscroll!

Some carousel implementations pause or step as they settle after a drag. Some also overshoot excessively before correcting their position. The current baseline is smooth on PC. I need your help fixing the remaining iOS issues.

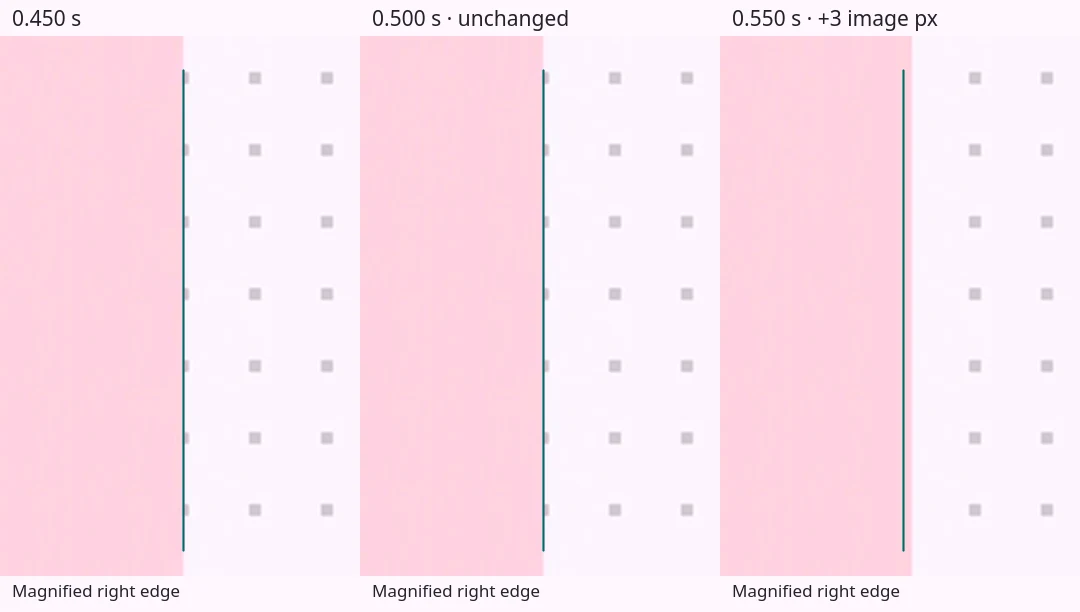

Three close-ups of the card’s right edge at 0.450, 0.500 and 0.550 seconds. The first two edges align; the third moves three recording pixels to the right. — The edge holds for 50 ms, then advances three recording pixels.

Playground

Try scrolling, dragging slowly, and releasing the carousel. Record an interaction below to download its motion data as JSON.

Loading experiment…

Recording

Stop after the carousel settles.

Loading recorder…

The last five recordings stay in this tab when you change playground settings. Download them before reloading or closing the tab. Recording stops when the page is hidden or after 60 seconds.

What’s recorded?

The tool records browser and display settings, input events, frame timestamps, native scroll offsets, and assigned CSS values. Recordings stay local to this tab; nothing is uploaded.

Pair the JSON with a screen recording to compare CSS values with rendered motion!

Implementation history

Version	Change	Observed result
V1 · Original native scrolling	Native smooth scrolling with queued geometry updates.	Stutter on desktop and iOS.
V2 · MD3-timed settling	MD3-timed settling, transform positioning, and native scroll writes on each frame.	Remaining roughness during settling.
V3 · Synchronized visual settling	Fractional settling and artwork offsets with native synchronization at completion.	Smoother desktop motion with remaining touch jitter and stutter.
V4 · Boundary clamping	Boundary clamping with layout containment and compositor hints.	Reduced directional jitter with remaining settling stutter.
V5 · Current baseline	Sticky track and boundary clamping without layout hints.	Smoother desktop motion with remaining touch settling steps.
V6 · Fixed masks	Fixed mask widths and artwork offsets with scroll-driven positions.	Remaining stutter, gaps, and overlaps.
V7 · Native-flow control	Fixed-width cards in normal flow.	Smoother initial phone tests; desktop scroll-wheel settling still steps.
V8 · Whole-pixel settling	Whole-pixel positions during custom settling.	Smooth mouse-release settling in the latest desktop test.
V9 · Custom touch settling	Native dragging followed by fractional custom settling.	Smoother initial settling with late corrections and boundary overscroll.

Stutter and overscroll

These recordings show pauses during settling, small position corrections, and a large displacement after a slight touch.

Release traces

Zero is the recorded input event: touchend on iOS, mouse pointerup on PC, or the arrow-button event for the Native PC capture. The reference curve uses 300 ms MD3 standard easing from the sampled position at that event.

Target · 300 ms MD3CSS positionScroll offset

Device Gesture

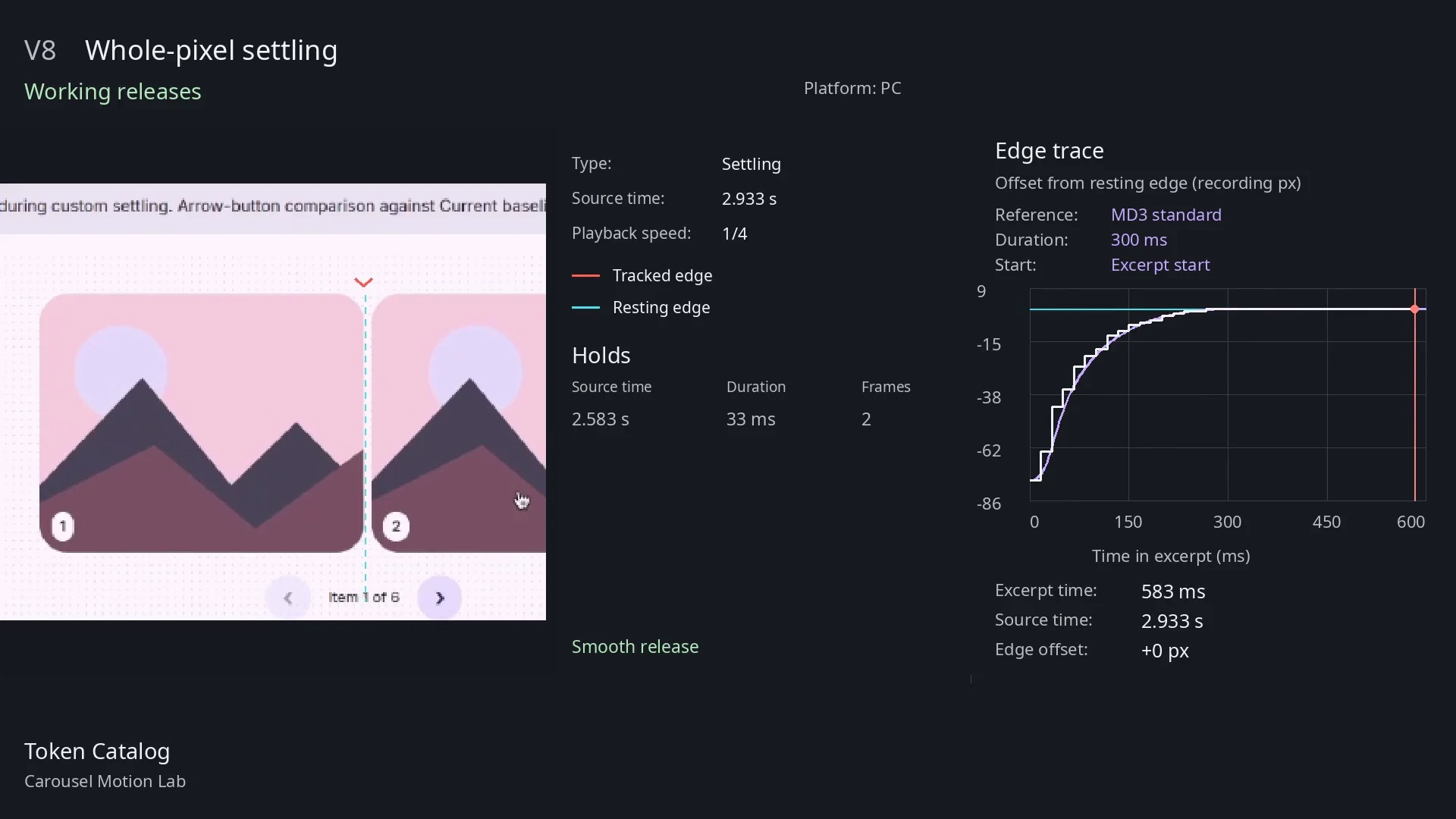

V8 · Whole-pixel settling · desktop target

Rounded looks comparable to the current baseline in these desktop tests. The brief two-frame hold is acceptable. This is the settling quality to match on iOS. View hold summary

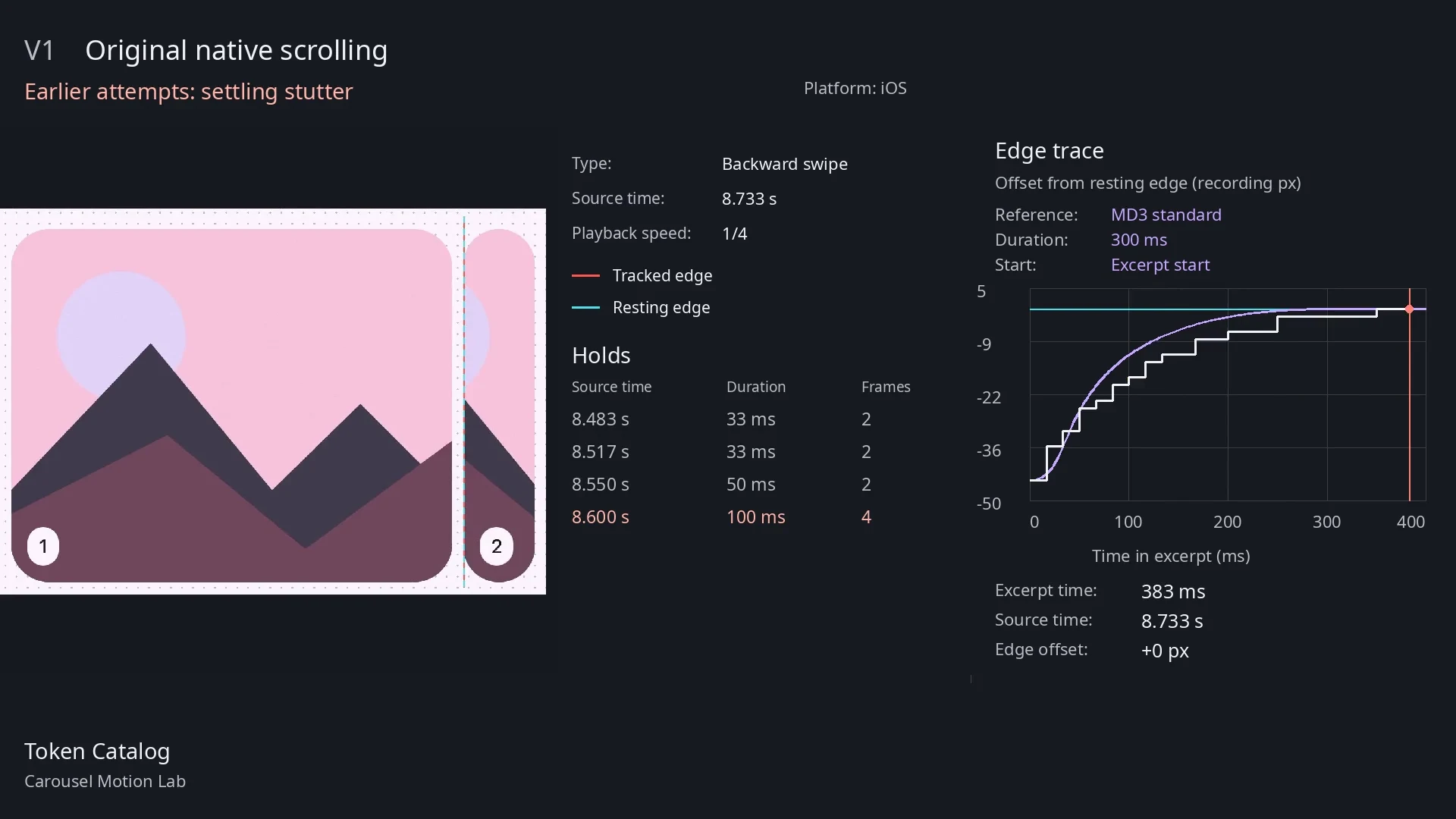

V1 · Original native scrolling · iOS

Return, forward swipe, and backward swipe. Measured settling holds reach 117 ms. View hold summary

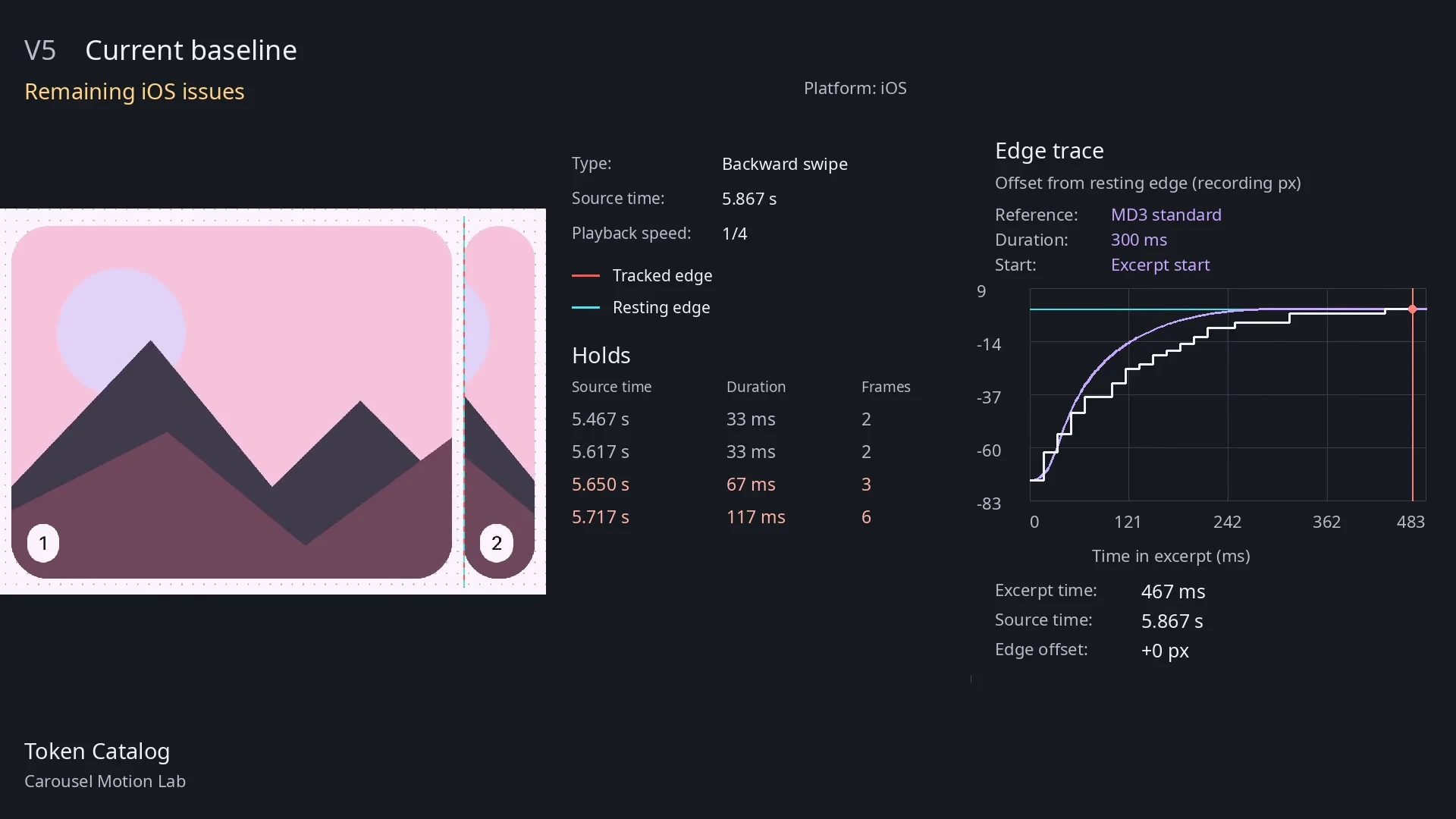

V5 · Current baseline · iOS

The same fixture with the current baseline. The slow tail still contains holds up to 117 ms. View hold summary

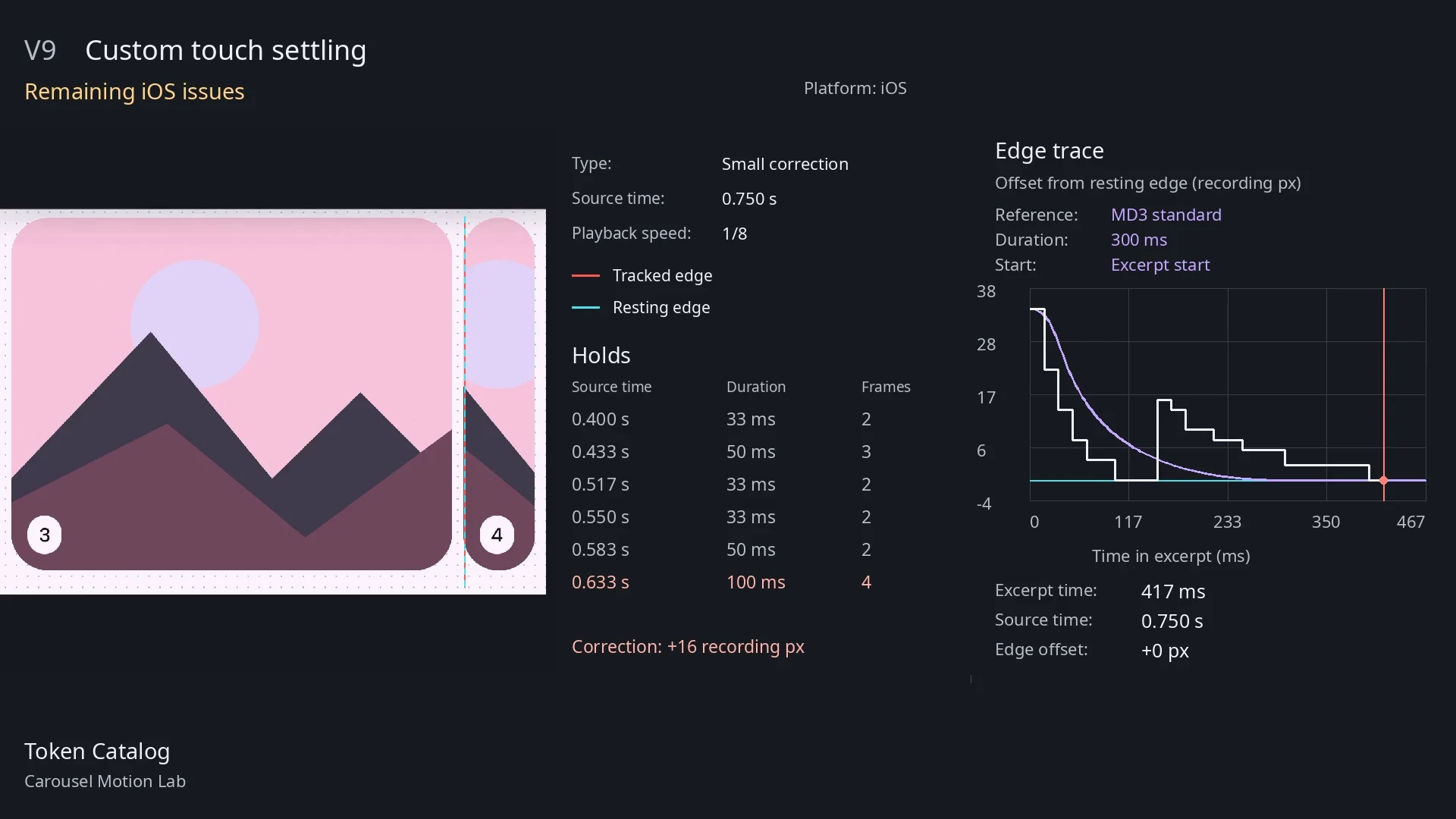

V9 · Custom touch settling · small correction

After reaching item 3, the tracked edge shifts 16 recording pixels and returns. This is separate from the full-item rollback in the JSON trace. View hold summary

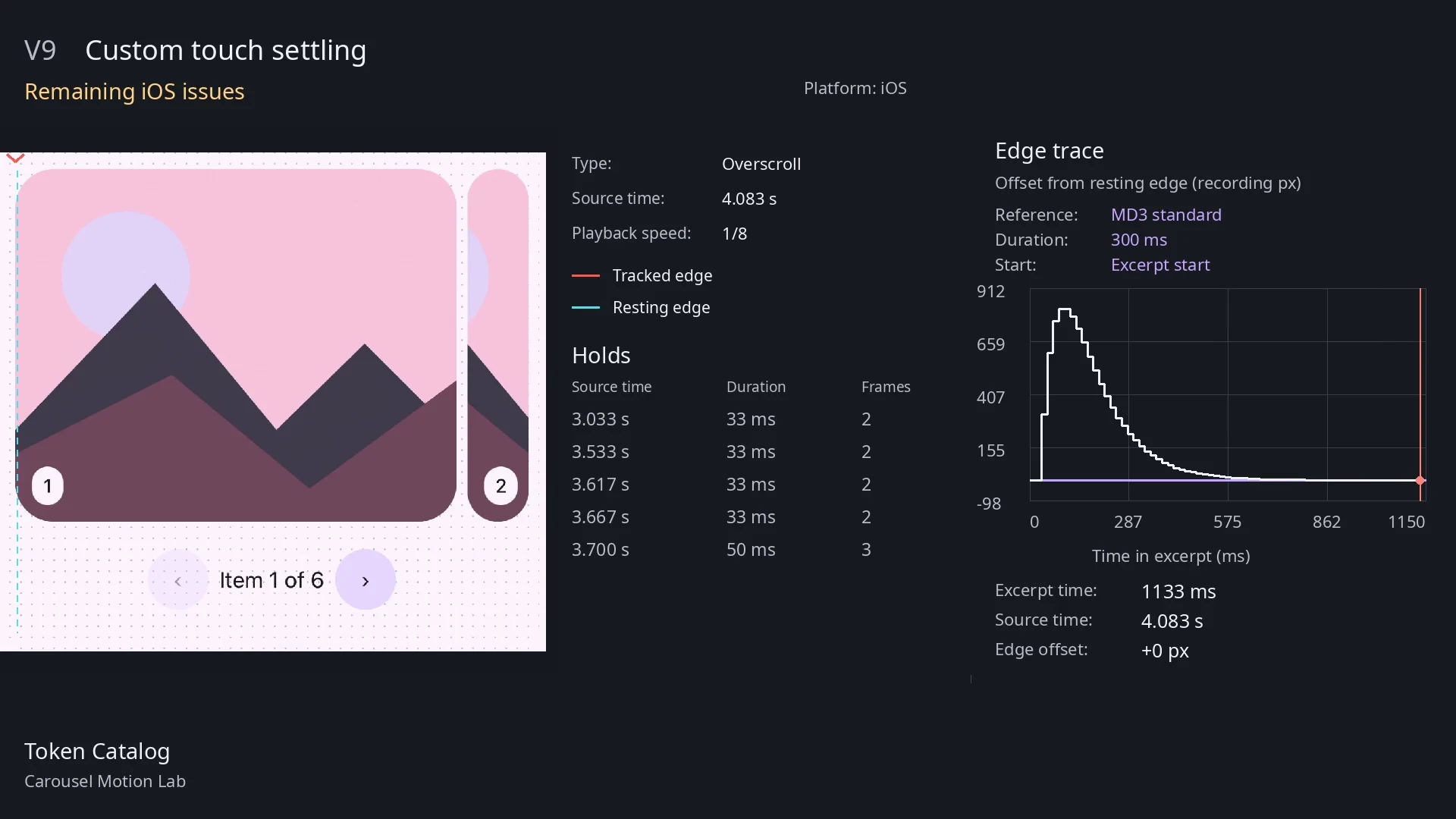

V9 · Custom touch settling · boundary overscroll

The card layer moves past its resting left edge, leaves a blank area, and returns. View hold summary

Touch handoff: cards before release, shifted far right leaving blank space, and back at the resting left edge. — A slight touch produces a large displacement to the right before the cards return.

V7–V9 · Additional iOS recordings

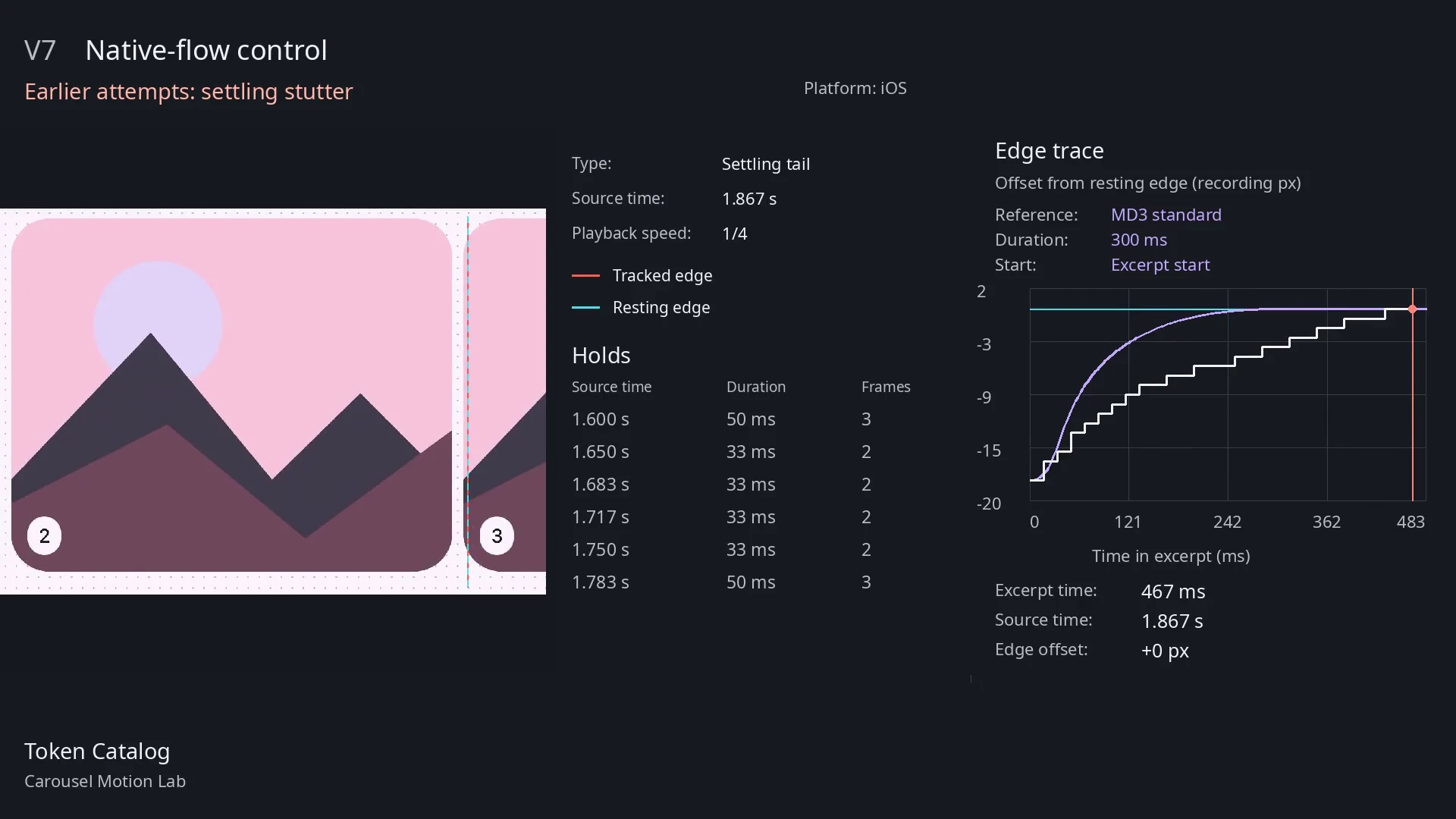

V7 · Native-flow control · iOS

Fixed-width cards in normal flow. The tracked edge continues in smaller increments during the tail. View hold summary

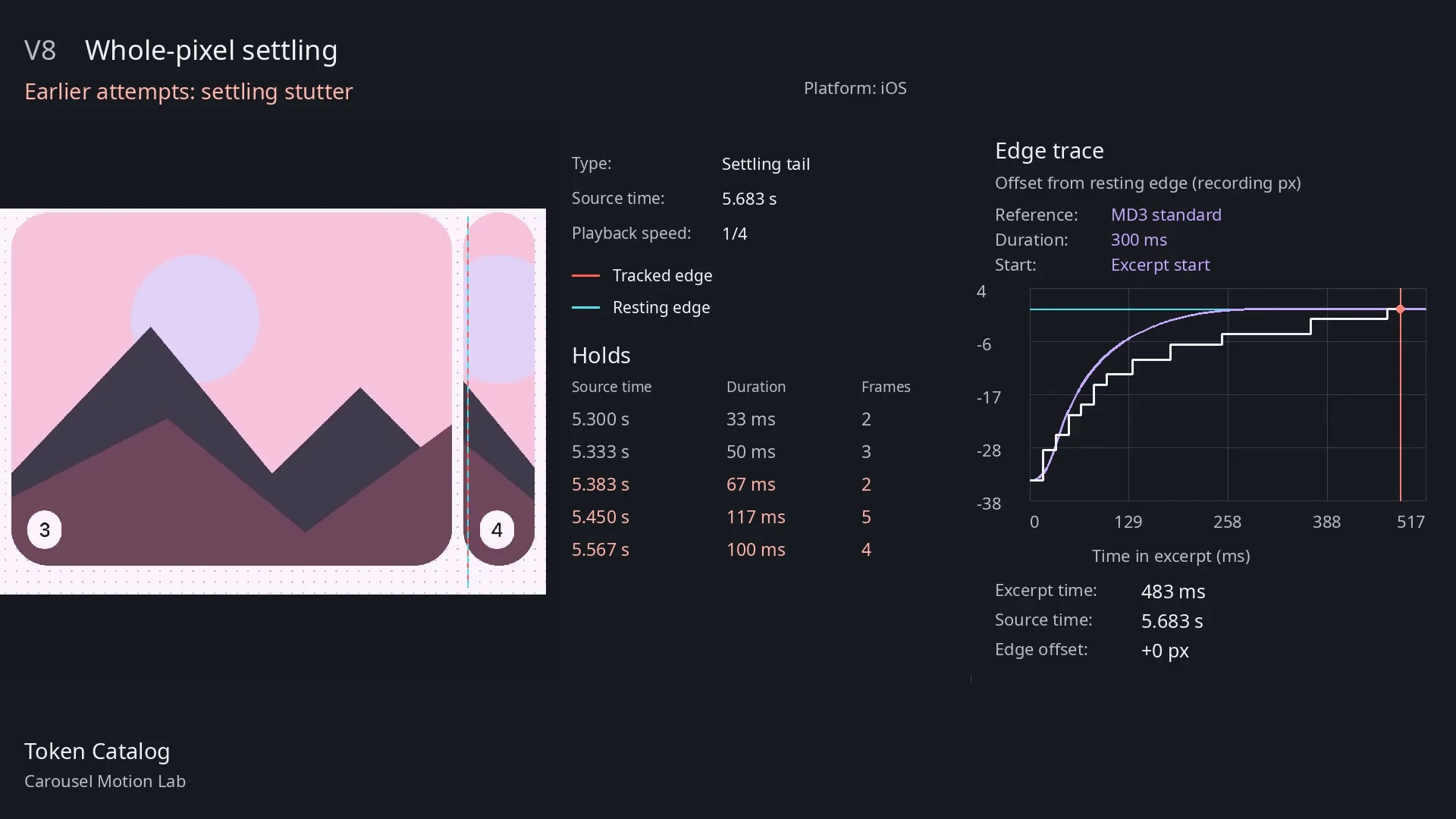

V8 · Whole-pixel settling · iOS

Touch release uses native settling. Edge holds reach 117 ms. View hold summary

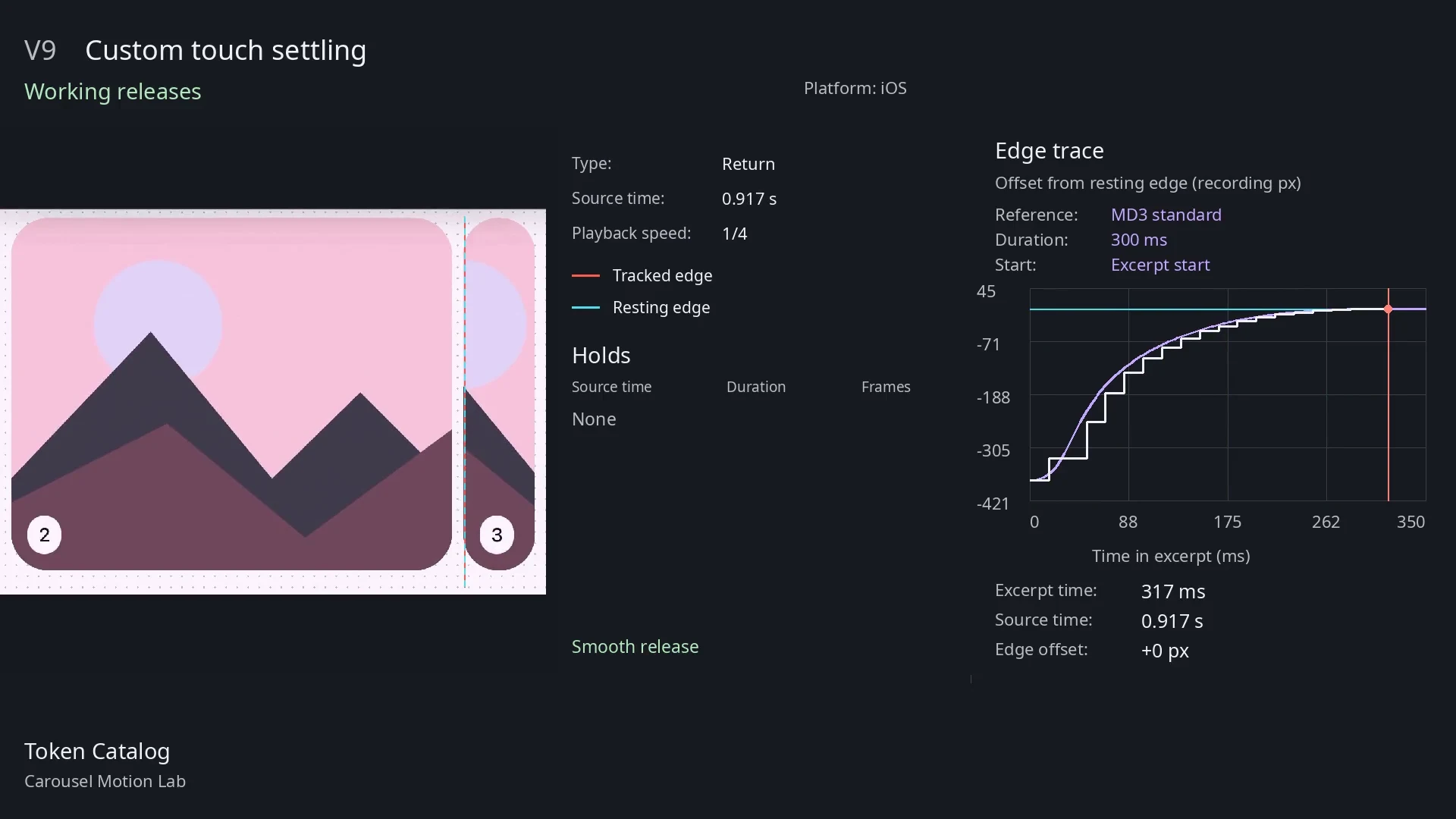

V9 · Custom touch settling · iOS

The smooth return meets the target. The pause and dragging before release are excluded. View hold summary

Device results

Earlier versions stuttered on PC. Later desktop tests showed smoother motion. Touch stutter remained on iPhone 15, iPhone 13 Pro Max, and iPad Air (5th generation). Tests included Safari, Chrome, Firefox, and Brave on iOS. The later MacBook Air M4 test showed no stutter.

Native scrolling and Touch handoff felt smoother in initial phone tests. Further handoff tests exposed the overscroll regression. Desktop mouse release and baseline touch release use different settling paths.

How the versions differ

The carousel uses HTML cards with inline SVG artwork. Most versions change the visible card widths as the scroll position changes, while keeping the artwork at a fixed size.

V5 · Current baseline positions the cards in a sticky track. V7 · Native-flow control uses fixed-width cards in normal document flow to show how the browser scrolls without that masking logic.

The later versions use MD3 standard easing over 300 ms for mouse-release and arrow-button animations. iOS swipes usually settle through native browser scrolling. V9 · Custom touch settling switches to JavaScript animation when the finger lifts.

Help fix the iOS release

Have a fix or a smaller reproduction? Open a pull request with the change, the implementation tested, and a before-and-after recording. Include the browser, device, and input method.

Keep the cards’ changing widths and the artwork’s proportions. Preserve vertical page scrolling, keyboard navigation, and reduced motion.

Open a pull request Report a finding
